Fire Rated Horizontal/ Overhead Glass (Insulated)
Fire rated insulated horizontal glass panels tested to the latest SCDF requirement - BS 476 Pt 21 or EN 1365-2:1999, with impact test to BS 6206:1981.
- Tested in BS 476 Part 4:1970
- Tested in BS 476 Part 22:1987
- EN 1365-2:2000 Fire resistance tests for loadbearing elements Part 2: Floors and roofs
Installed by Vanson

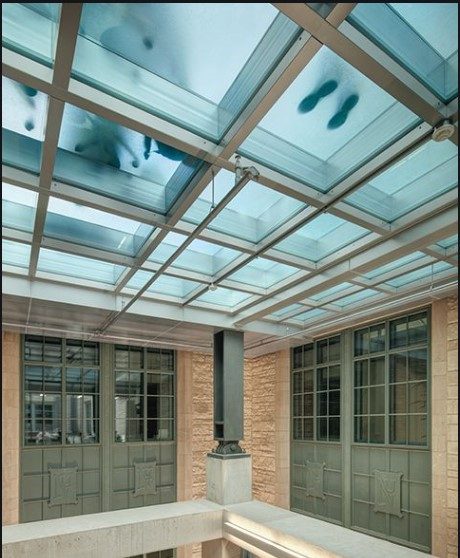

1 photograph from a real installation
Fire Rated Horizontal or Overhead Glass Systems (Insulated)
- Tested in BS 476 Part 4:1970
- Tested in BS 476 Part 22:1987
- EN 1365-2:2000 Fire resistance tests for loadbearing elements Part 2: Floors and roofs
- EI 60 & EI 120 System
120 minutes integrity and 120 minutes insulation
LFG Horizontal Glass - with load bearing
- 53.76mm thick fire rated glass, consisting of:
- 7mm laminated glass (EW 30)
- + 38mm gel
- + 8.76mm laminated annealed glass
33mm laminated glass, consisting of
- 10mm clear tempered glass
- + 10mm clear tempered glass
- + 10mm clear Low E (hard coat) glass
Ask about this glass
Send us the drawing or a site photo and we will tell you what is possible, what it is tested to, and what it takes to install.
