Fire Rated Framed Fixed Glass Partition System
Fire rated insulated fixed glass panels tested to the latest SCDF requirement - EN 1364-1:2015 or BS 476 Pt 22, with impact test to BS 6206:1981. Partition type: framed fixed glass panel.
- EI 60 & EI 120 (Internal Usage)
- EI 60 & EI 120 (External Usage/ Colour Matching Glass)
- EI 60 & EI 120 Glass Joint System
Installed by Vanson

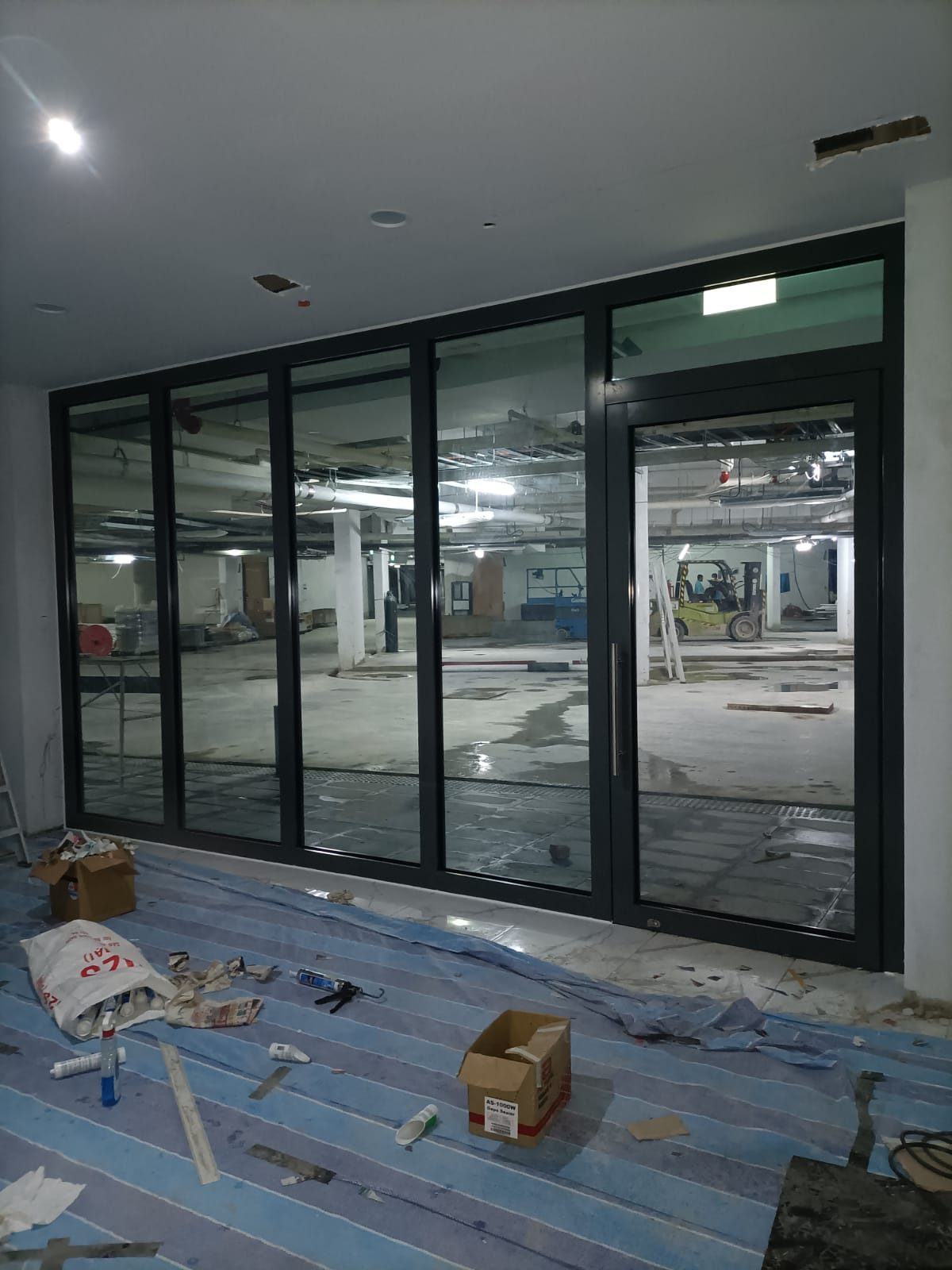

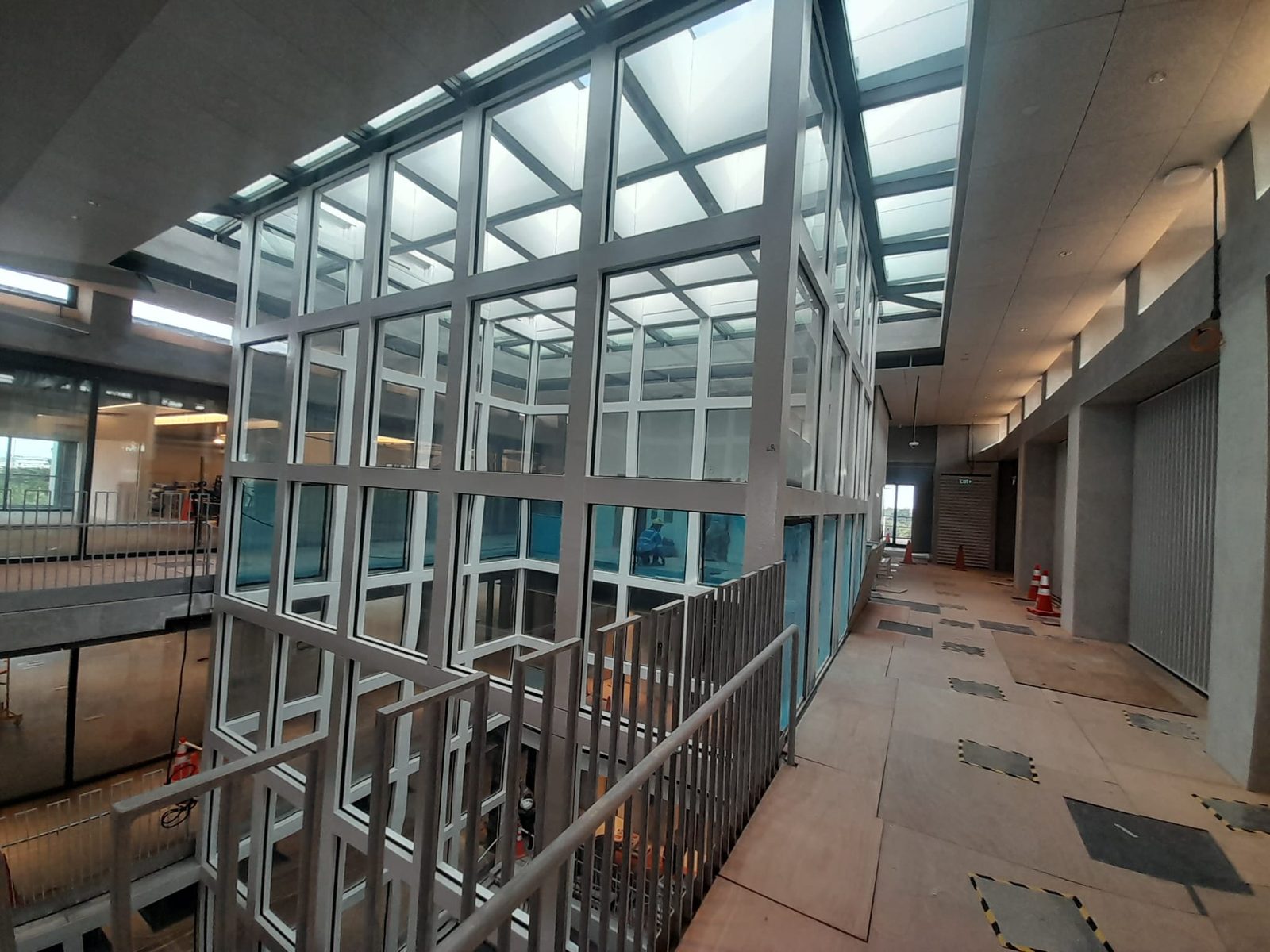

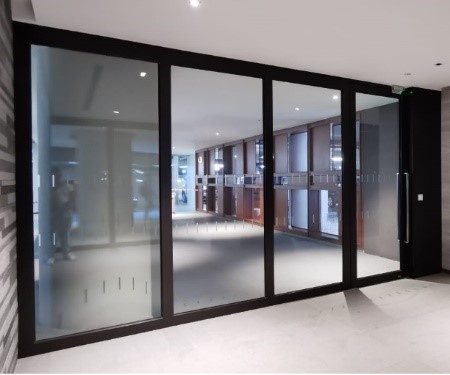

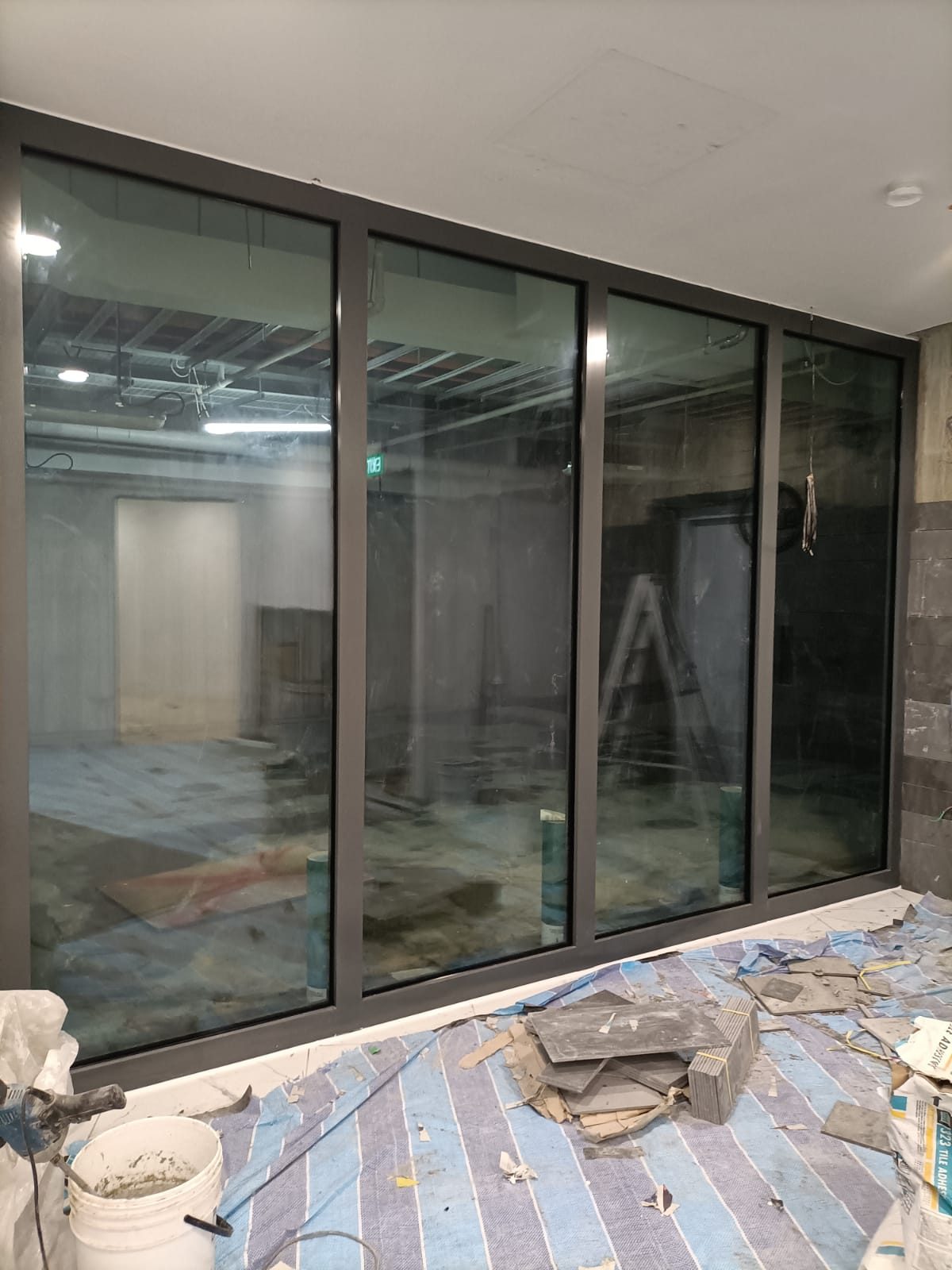

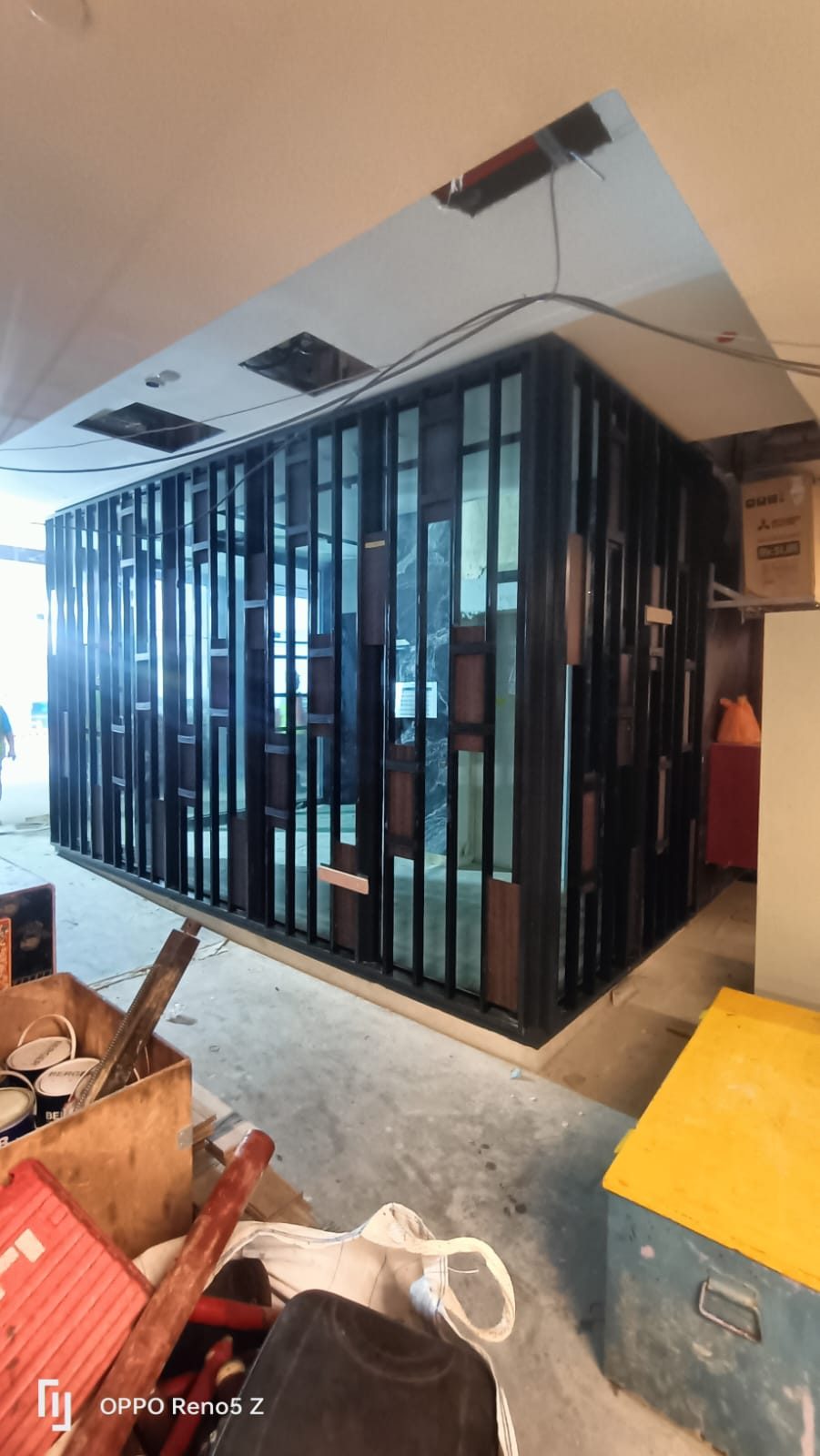

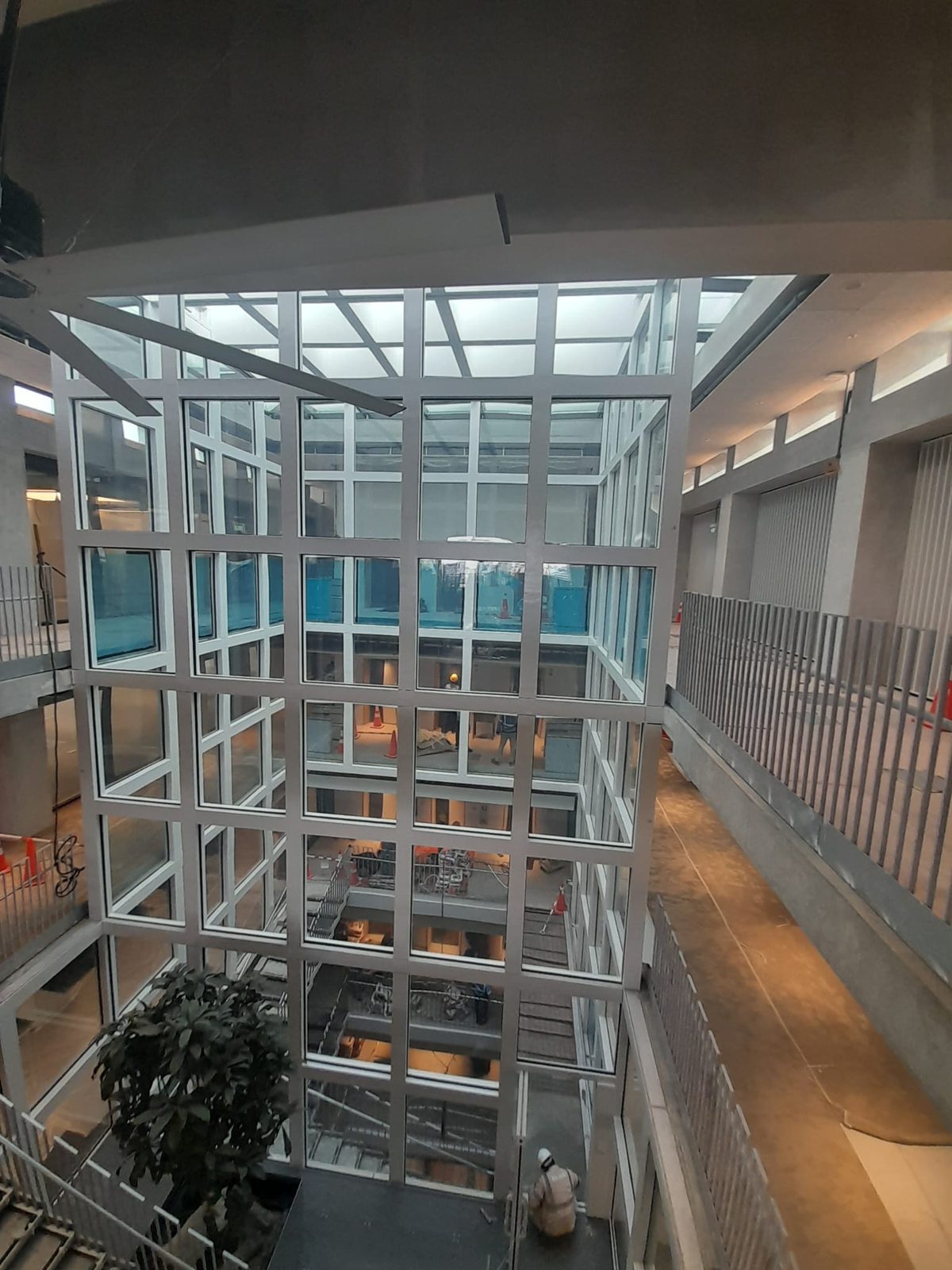

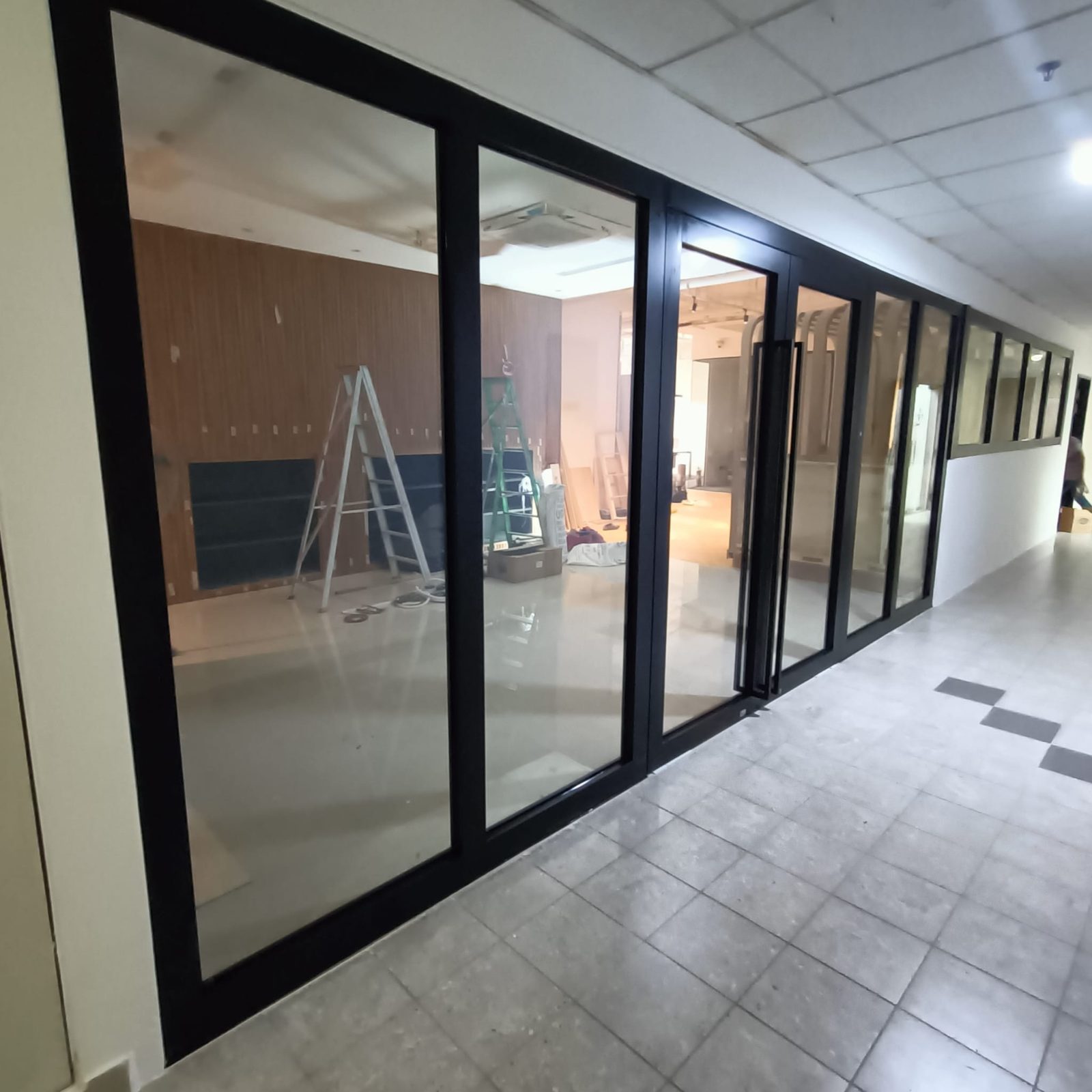

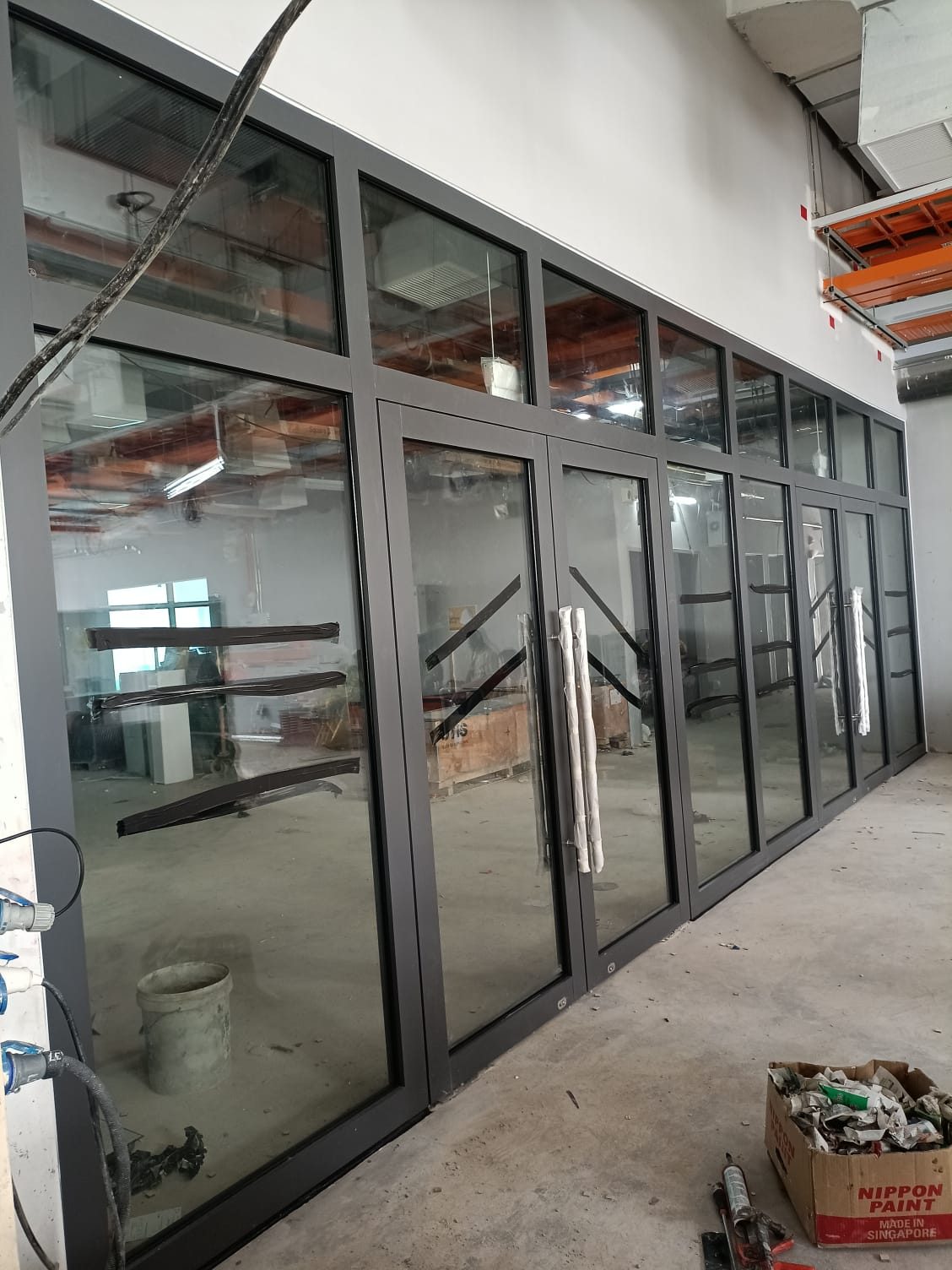

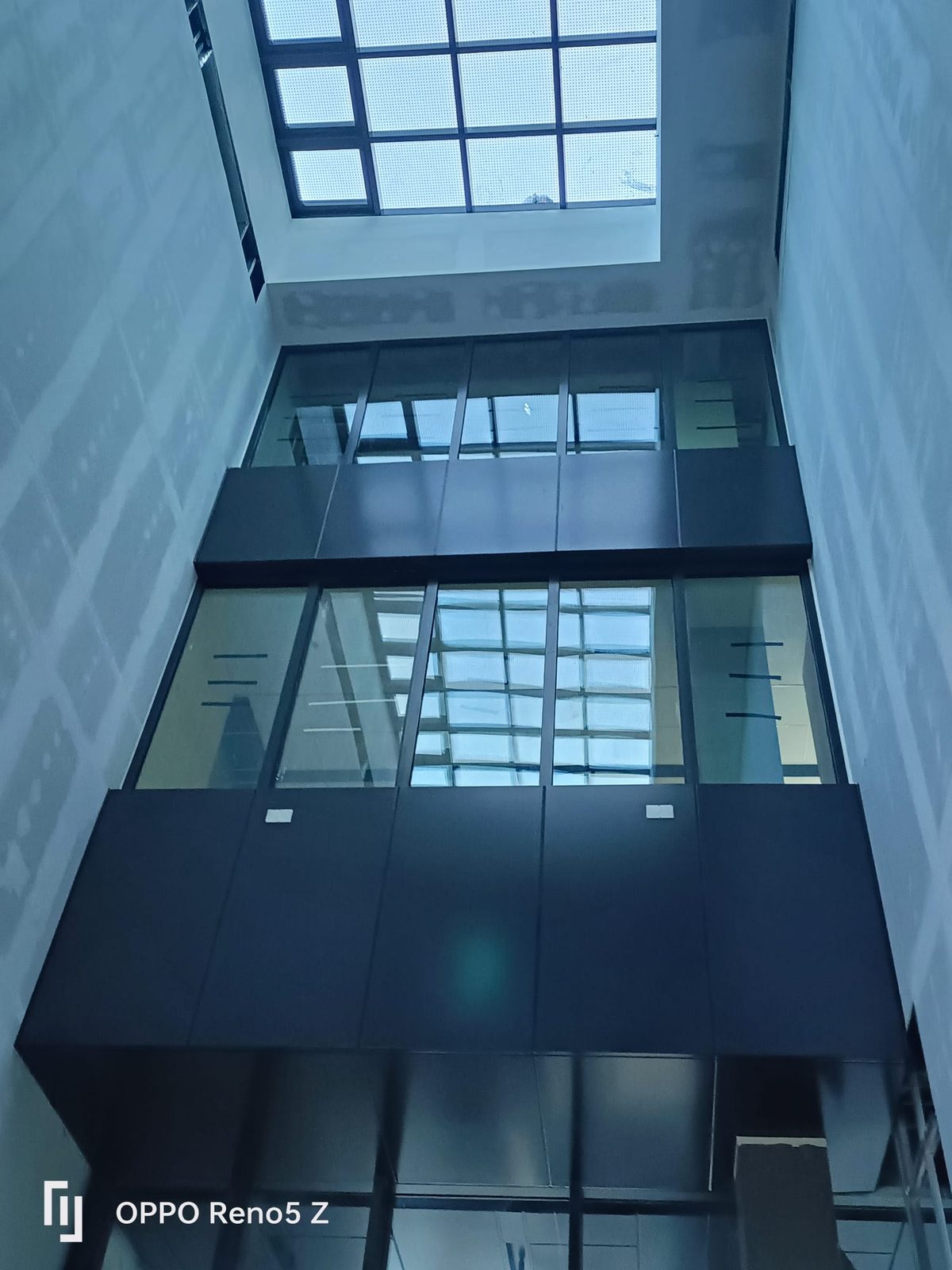

9 photographs from real installations and fire tests
Fire Rated Glass Partition System (Insulated)
- EI 60 & EI 120 (Internal Usage)
- EI 60 & EI 120 (External Usage/ Colour Matching Glass)
- EI 60 & EI 120 Glass Joint System
- EI 60 & EI 120 Standard Frame System
- EI 60 & EI 120 Mega Size System
- EI 120 Slim Glass System
- EI 240 Standard Frame System
60 minutes integrity and 60 minutes insulation
LFG EI 60
- Thickness - +/- 29mm
- Weight - 47 kg/m²
- Direct airborne sound reduction (EN12758) Rw(C,Ctr) - 44 dB
- Shading coefficient - 0,82
- Light transmittance - 78,4
- U-value (EN673) - 4,44 W/m²K
- Mechanical resistance against sudden temperature changes - 200°
Contraflam 60-3
- Thickness - +/- 27mm
- Weight - 59 kg/m²
- Sound reduction Rw (EN140-3) - 43 dB
- Shading coefficient - 0,65
- Light transmittance - 81%
- U-value (EN673) - 4,44 W/m²K
90 minutes integrity and 90 minutes insulation
Contraflam 90-4
- Thickness - +/- 43mm
- Weight - 89.5 kg/m²
- Shading coefficient - 0,6795
- Light transmittance - 77.4%
- U-value (EN673) - 3,564 W/m²K
LFG EI 90
- Thickness - +/- 39mm
- Weight - 60 kg/m²
- Direct airborne sound reduction (EN12758) Rw(C,Ctr) - 44 dB
- U-value (EN673) - 4,44 W/m²K
- Mechanical resistance against sudden temperature changes - 200° K
120 minutes integrity
Contraflam Lite 60
- Thickness - +/- 14mm
- Weight - 31 kg/m²
- Sound reduction Rw (EN140-3) - 38 dB
- Shading coefficient - 0,71
- Light transmittance - 86%
- U-value (EN673) - 5,0 W/m²K
120 minutes integrity and 120 minutes insulation
LFG EI 120
- Thickness - +/- 52mm
- Weight - 75 kg/m²
- Direct airborne sound reduction (EN12758) Rw(C,Ctr) - 46 dB
- U-value (EN673) - 3,77 W/m²K
- Mechanical resistance against sudden temperature changes - 200° K
Contraflam 120-5
- Thickness - +/- 54mm
- Weight - 115 kg/m²
- Shading coefficient - 0,57
- Light transmittance - 74%
- U-value (EN673) - 3,3 W/m²K
Ask about this partition
Send us the drawing or a site photo and we will tell you what is possible, what it is tested to, and what it takes to install.
