Fire Rated Frameless Fixed Glass Partition
Fire rated insulated frameless fixed glass panels tested to the latest SCDF requirement - EN 1364-1:2015 or BS 476 Pt 22, with impact test to BS 6206:1981. Partition type: frameless fixed glass panel.
- EI 60 & EI 120 (Internal Usage)
- EI 60 & EI 120 (External Usage/ Colour Matching Glass)
- EI 60 & EI 120 Glass Joint System
Installed by Vanson

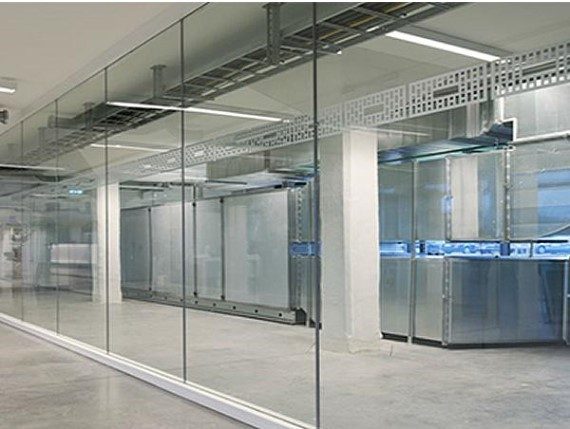

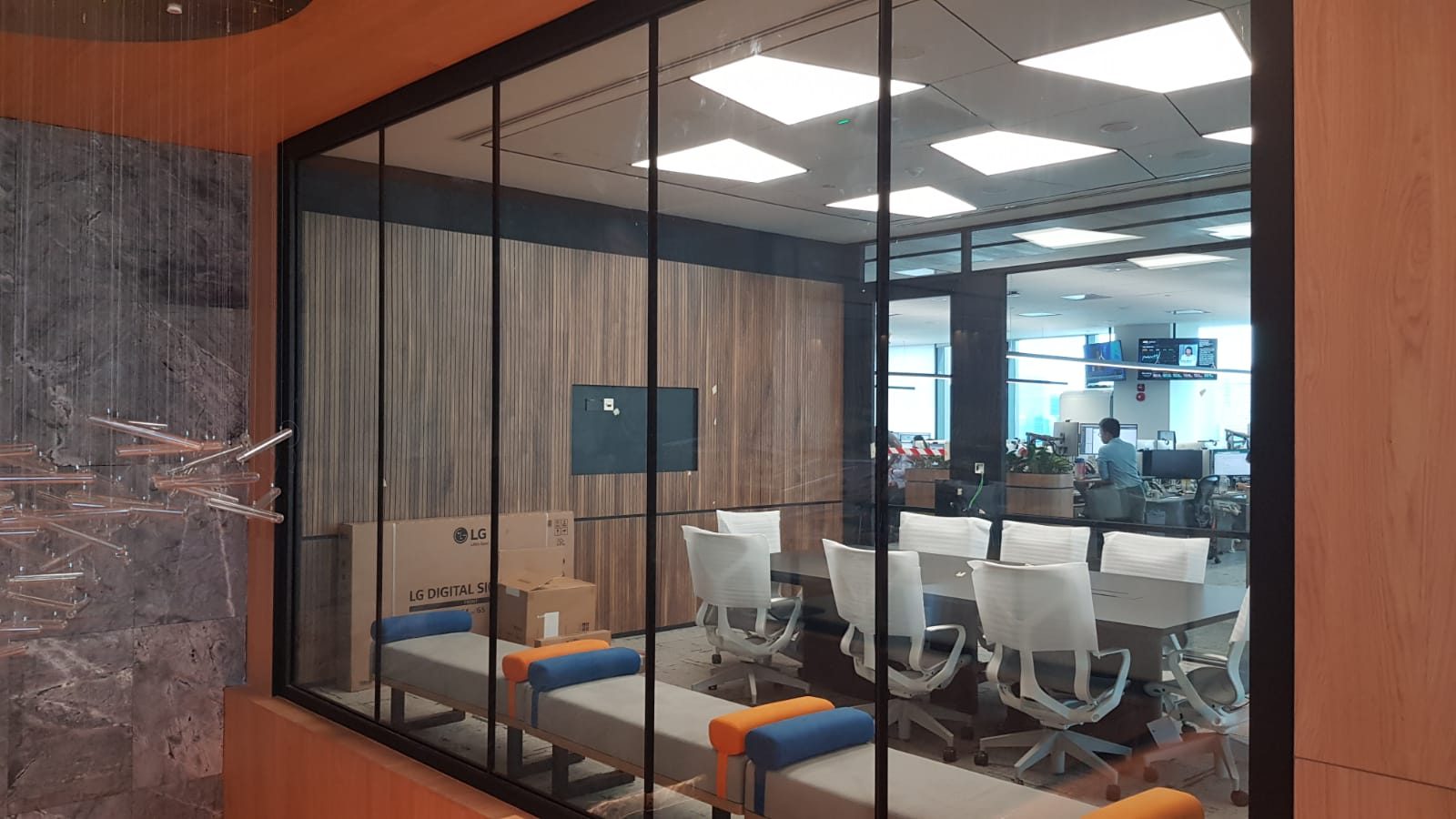

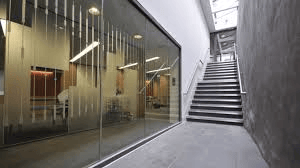

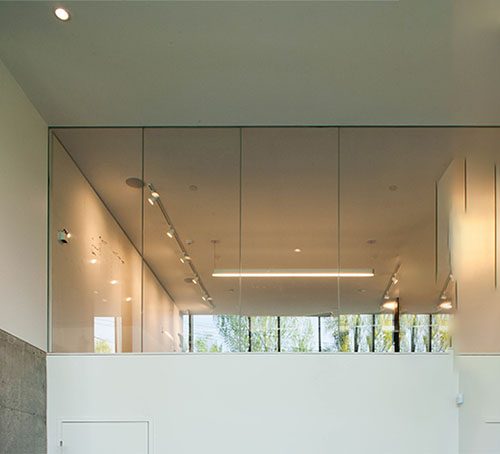

4 photographs from real installations and fire tests
Fire Rated Glass Partition System (Insulated)
- EI 60 & EI 120 (Internal Usage)
- EI 60 & EI 120 (External Usage/ Colour Matching Glass)
- EI 60 & EI 120 Glass Joint System
- EI 60 & EI 120 Standard Frame System
- EI 60 & EI 120 Mega Size System
- EI 120 Slim Glass System
- EI 240 Standard Frame System
Fire rating and glass type
LFG EI 60
- Thickness - +/- 31mm
- Weight - 69 kg/m²
- Sound reduction Rw (EN140-3) - 43 dB
- Shading coefficient - 0,62
- Light transmittance - 80%
- U-value (EN673) - 4,3 W/m²K
Ask about this partition
Send us the drawing or a site photo and we will tell you what is possible, what it is tested to, and what it takes to install.
