Bomb Blast Resistant Glass
Blast resistant security glass - classified from ER1 to ER4 and certified to European standard DIN EN 13541.
- Glazing at public buildings - airports, railway stations and similar
- Political buildings - government offices, embassies, law courts and similar
- Oil and gas industry
Installed by Vanson

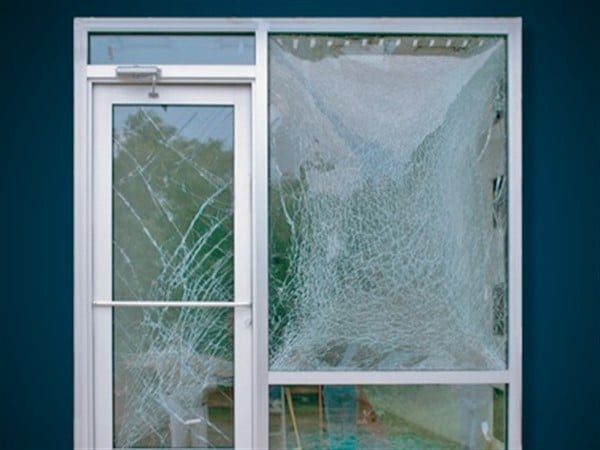

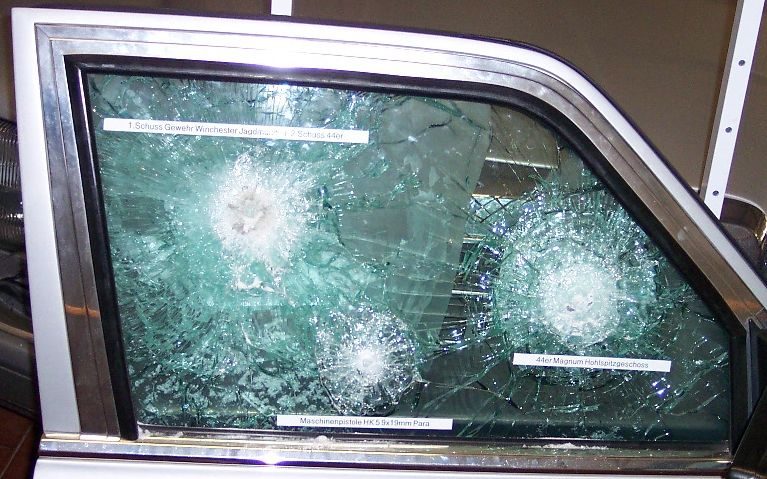

3 photographs from real installations and fire tests
Application
- Glazing at public buildings - airports, railway stations and similar
- Political buildings - government offices, embassies, law courts and similar
- Oil and gas industry
Blast Resistance Glass System
- Tested in EN 13541-1
- ER1 to ER4
Classification to EN 13541
| Resistance class | Products | Reflection positive pressure PR (kPa) | Specific impulse (kPa ms) | Positive pressure duration (ms) |
|---|---|---|---|---|
| ER 1 (S/NS) | Vetrogard Blast ER1-S Vetrogard Blast ER1-S Climaplus Vetrogard Blast ER1-NS Vetrogard Blast ER1-NS Climaplus | >50 | 370-900 | >20 |
| ER 2 (S/NS) | Vetrogard Blast ER2-S Vetrogard Blast ER2-S Climaplus Vetrogard Blast ER2-NS Vetrogard Blast ER2-NS Climaplus | >100 | 900-1500 | >20 |
| ER 3 (S) | Vetrogard Blast ER3-S Vetrogard Blast ER3-S Climaplus | >150 | 1500-2200 | >20 |
| ER 4 (S/NS) | Vetrogard Blast ER4-S Vetrogard Blast ER4-S Climaplus Vetrogard Blast ER4-NS Vetrogard Blast ER4-NS Climaplus | >200 | 2200-3200 | >20 |
Ask about this glass
Send us the drawing or a site photo and we will tell you what is possible, what it is tested to, and what it takes to install.
