Bullet Resistant Glass
Bullet resistant security glass - classified from BR1 to BR7 and SG1 / SG2, certified to European standard EN 1063.
- Non-splintering: no perforation of the glazing by the bullet or parts of the bullet, and no perforation of the witness foil by glass splinters from the rear face.
- Splintering: no perforation of the glazing by the bullet or parts of the bullet, but with perforation of the witness foil by glass splinters from the rear face.
- Test method: shooting test with weapons / guns.
Installed by Vanson
3 photographs from real installations and fire tests
Performance
- Non-splintering: no perforation of the glazing by the bullet or parts of the bullet, and no perforation of the witness foil by glass splinters from the rear face.
- Splintering: no perforation of the glazing by the bullet or parts of the bullet, but with perforation of the witness foil by glass splinters from the rear face.
- Test method: shooting test with weapons / guns.
Bullet Resistance Glass System
- Tested in EN 1063 - bullet-resistant glazing. BR1 to BR7 classifications (handguns to rifles)
- Tested in EN 1522 / EN 1523 - bullet-resistant windows, doors, shutters and blinds. FB1 to FB7 and FSG classifications, testing the complete system (glass + frame + fixings)
- Tested in NIJ 0108.01 - ballistic resistance of protective materials, aligned with law enforcement requirements
- UL 752 (U.S.) (selected level only) - Levels 1 to 10, from small-calibre handguns to high-powered rifles. Level 10 is the highest, resisting military rifle threats

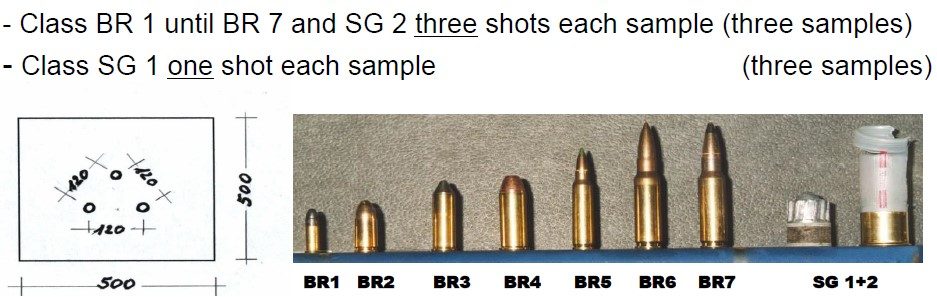

BR bullet-resistance in accordance with DIN EN 1063
| Resistance class | Calibre | Type of bullet | Mass of bullet (g) | Speed V (m/s) | Shooting distance (m) | Number of hits | Hit distance (mm) |
|---|---|---|---|---|---|---|---|
| BR 1 | .22LR | L/RN | 2,6 +/-0,1 | 360 +/-10 | 10 | 3 | 120 |
| BR 2 | 9mm Luger | FJ (1)/RN/SC | 8,0 +/-0,1 | 400 +/-10 | 5 | 3 | 120 |
| BR 3 | 0.357 Magn. | FJ (1)/CB/SC | 10,2 +/-0,1 | 430 +/-10 | 5 | 3 | 120 |
| BR 4 | 0.44 Magn. | FJ (2)/FN/SC | 15,6 +/-0,1 | 440 +/-10 | 5 | 3 | 120 |
| BR 5 | 5,56 x 45* | FJ (2)/PB/SCP1 | 4,0 +/-0,1 | 950 +/-10 | 10 | 3 | 120 |
| BR 6 | 7,62 x 51 | FJ (1)/PB/SC | 9,5 +/-0,1 | 830 +/-10 | 10 | 3 | 120 |
| BR 7 | 7,62 x 51* | FJ (2)/PB/HC1 | 9,8 +/-0,1 | 820 +/-10 | 10 | 3 | 120 |
Ask about this glass
Send us the drawing or a site photo and we will tell you what is possible, what it is tested to, and what it takes to install.
